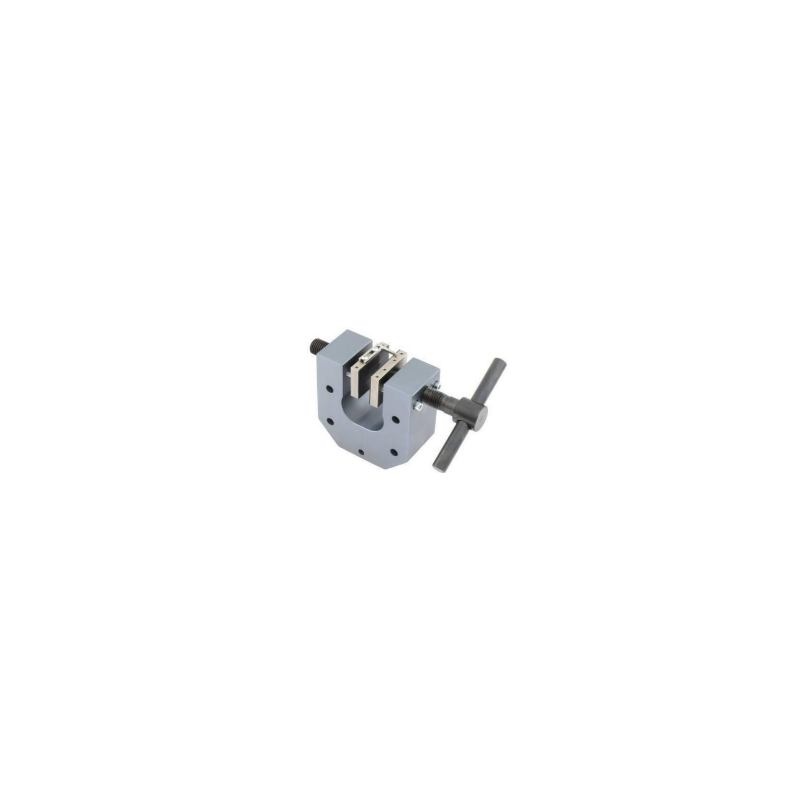

Flat screw-on jaws 20kN / 5000 lbs

Flat jaw with screw clamping for tests up to 20 KN (5000 lbs). Pyramidal type jaws, ideal for testing relatively hard or rigid materials (plastic, metal, etc.). Other types of jaws available on request (wave, rubber, V...).

Both jaws can be moved to adjust the alignment between the top and bottom jaws. One of the two jaws is equipped with a handwheel for clamping the sample.

Specifications :

• Maximum capacity: 20 KN (1120 lbs)
• Opening: 0 to 32 mm (thickness of the sample)
• Gripping width: 60mm (2.36 in)
• Gripping height: 40mm (1.57 in)
• Type of jaws: pyramidal (1.2x45°)
• Attachment system: 5/8 (15.9mm) quick connector with pin
• Body material: Nickel-plated steel
• Jaw material : Nickel-plated steel
• Temperature range: 0 - 350°C (32-662 °F)
• Weight for a pair: 5.37kg (11.82 lb)

Quantity: 1 pair
