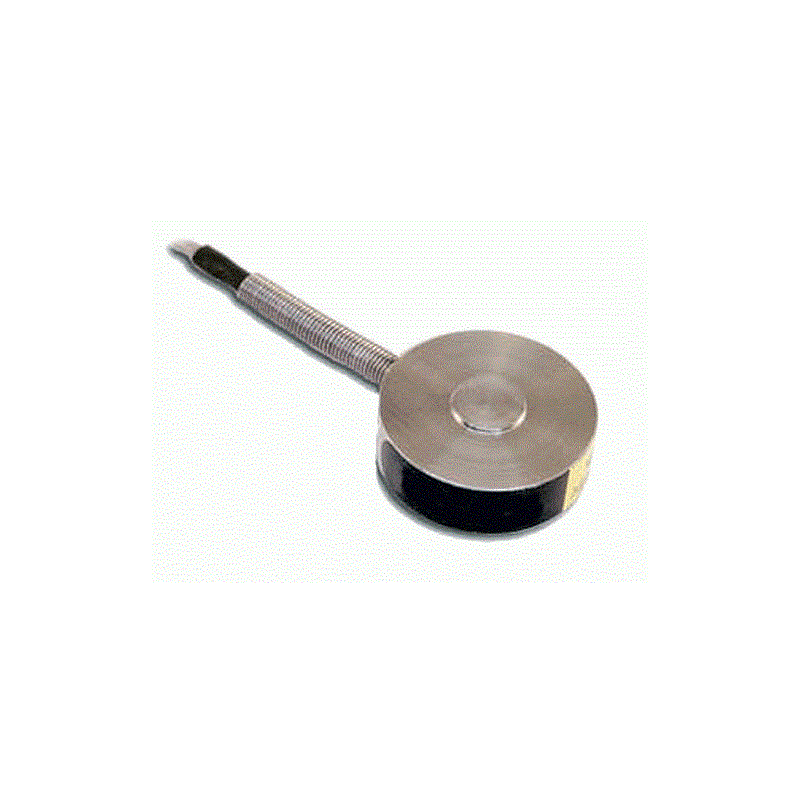

Miniature compression load cell LLB450

Highlights:
  • Capacity : 20 kN, 50 kN
  • Compact load cell
  • Precision : 0,5% FS
  • Certificate of calibration included
Series code: SPIP LLB450
Availability
  • Documentation
  • 3D pdf
  • Plan

The SPIP LLB450 series miniature compression load cell for high capacities are recognized automatically by all the CENTOR Star and Dual, and they can complete a set of force/torque measurements at a very reasonable price. This type of load cell is ideal to measure important forces when the working space is limited.

The sensor characteristics are stored in the memory of the SPIP interface located inside the sensor connector. When the CENTOR Star or Dual is switched on, the information is collected from the central memory and the instrument is automatically configured: it takes into account the type of sensor, its maximum capacity, its calibration data and its overloads without the operator having to make any calibration adjustments.

Required apparatus: Centor Touch gauge

Features:

  • Available capacities: 20 kN, 50 kN
  • Compression only
  • Precision: 0,5 % FS
  • Total height: 16.0 mm (0.63in)
  • Outside diameter: 37,6 mm (1.48in)
Applications: assembly force testing, press



Series code: SPIP LLB450
Price
Availability
  • Documentation
  • 3D pdf
  • Plan
