Caligraph - Data acquisition and analyzing software for Centor series

search

What's New in Caligraph V12.30

Caligraph has been updated to offer greater control over your data acquisition and enhance the traceability of your tests.

  • Adjustable Acquisition Frequency
    With the Centor Easy II, you can adjust the acquisition frequency directly from Caligraph to match the characteristics of your test.

  • Data Transmission Up to 500 Hz with the Centor Easy II
    Analyze high-speed tests and short-duration force variations in greater detail thanks to USB data transmission rates of up to 500 Hz.

  • Integrated Audit Trail
    Configuration changes are recorded in an Audit Trail to facilitate the traceability of operations and meet your quality requirements.



CALIGRAPH

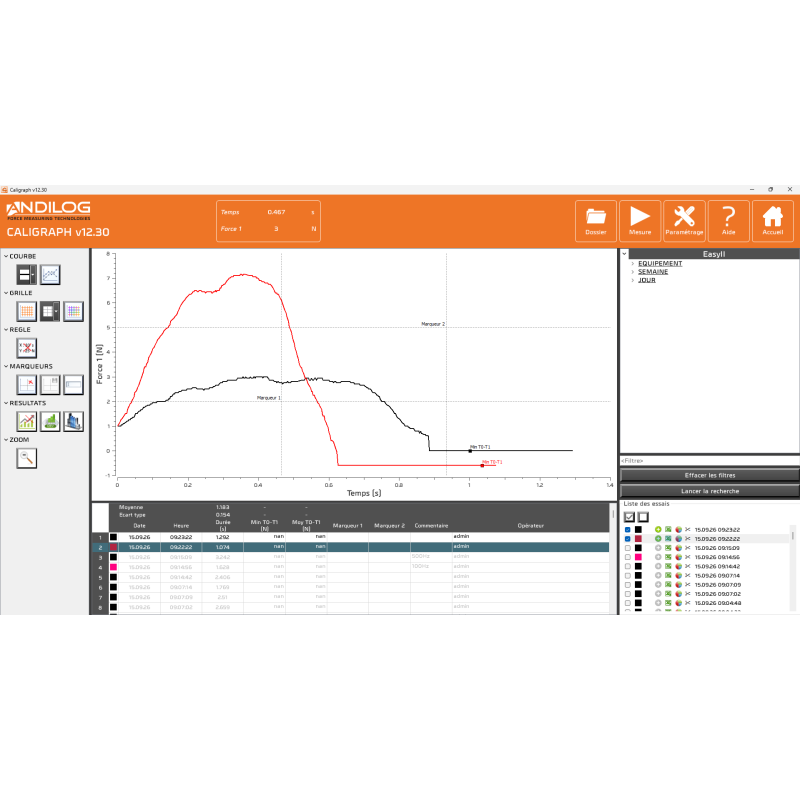

  • CALIGRAPH Software to analyze force measurements
  • CALIGRAPH Software analyze
  • CALIGRAPH Software parameters
  • CALIGRAPH Software configuration
Communication
RS232, USB, Bluetooth
Computer data rate
Up to 1 000 Hz
