Centor Easy II

search

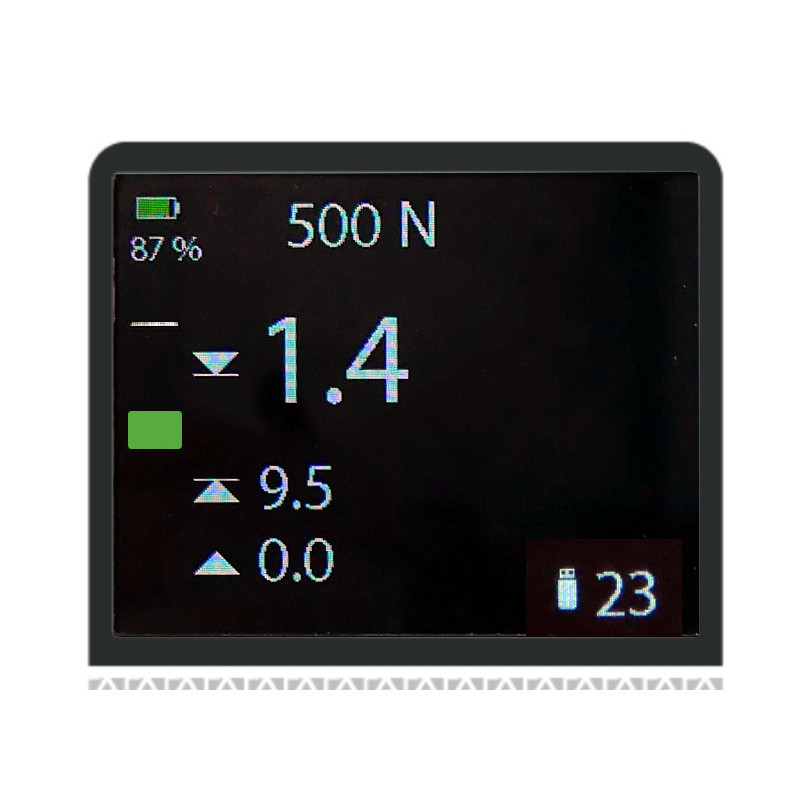

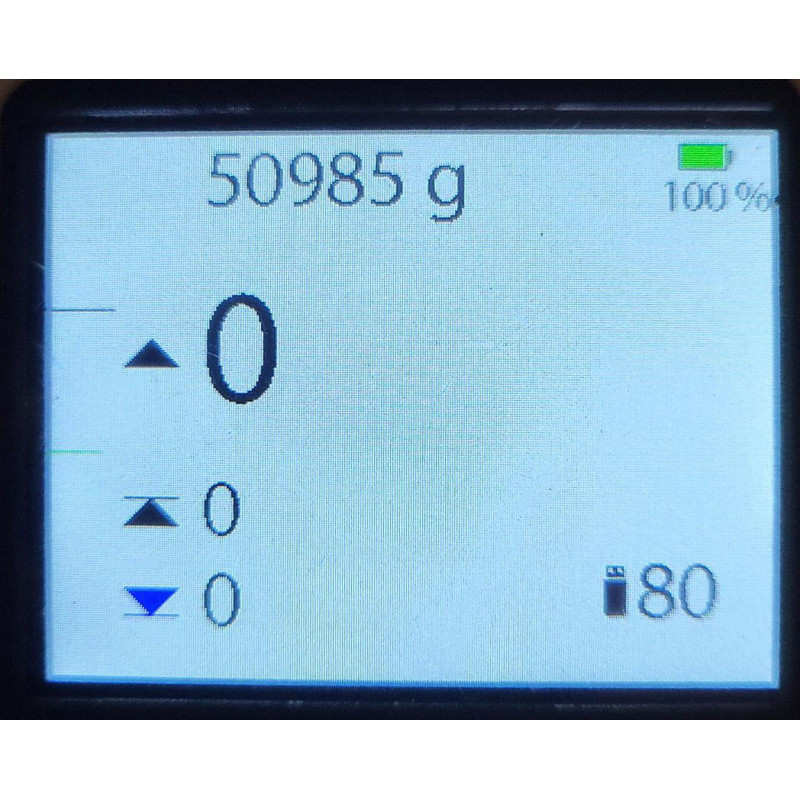

The Centor Easy II force gauges are designed to meet the production needs of its users. This device offers several features which are indispensable today for quality control, for example: ease of reading with its backlit color display, USB output, memory of the last 500 values and ability to set thresholds with visual and sound alarms. Its highly efficient measurement chain enables it to use a sampling rate of  2,000 Hertz with a resolution of 1/10,000 FS and a total error of less than 0.1% FS.

Designed for use in an industrial environment, it is an ideal tool for tests during production.

Available capacities: 10N, 25N, 50N, 100N, 250N, 500N, 1000N / 2lbs, 5lbs, 10lbs, 20lbs, 50lbs, 100lbs, 200lbs

From 895 tax excl. €


Measuring direction
Tension and compression
Accuracy
0.1% of full scale
Resolution
1/10,000 of full scale
Internal load cell sampling rate
2,000 Hz
Autonomy
15 hours
Units
N, kN, lb, kg, Oz, daN, g
Display
Color, backlight
Display type
3 lines
Data memory
500 results
Communication
USB
Computer data rate
100 Hz
Overload protection
200% of full scale
Auto-off
Adjustable from 5 to 15 minuts, can be desactivated
I/O open drain
2 Inputs / 2 Outputs
Country of origin
France or USA
HS code
9024 80 00
