Gyrotork TH - Screwdriver with torque and angle

    Gyrotork TH
    search

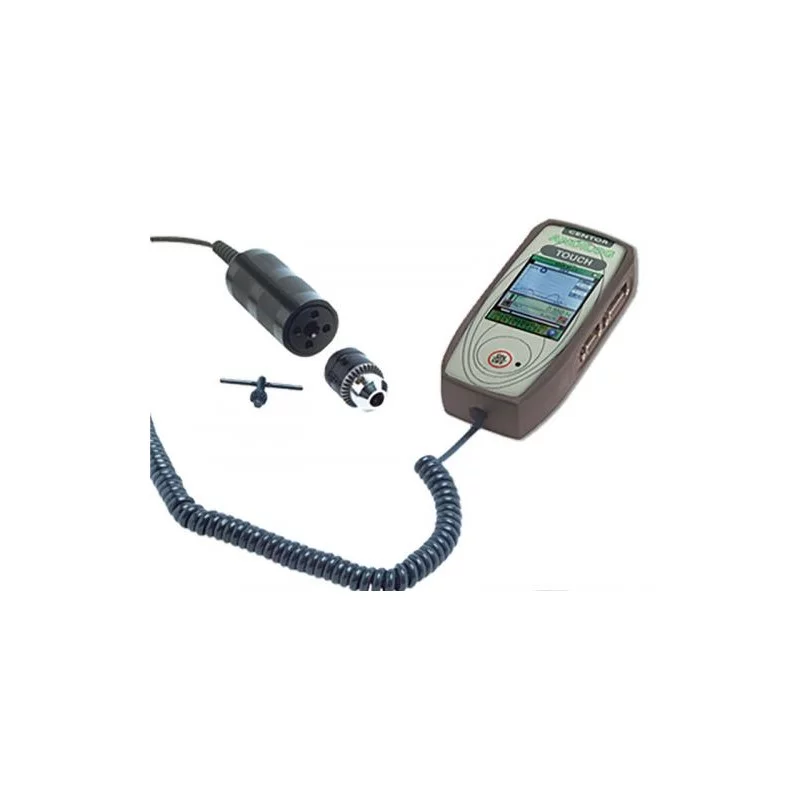

    Gyrotork range is Andilog's new generation of torque gauges incorporating a high-precision strain-gauge torque sensor and a gyroscope for angle measurement. Coupled with Centor Touch measurement electronics, the Gyrotork can plot torque curves in real time as a function of rotation angle on its color touch screen.

    The Gyrotork can automatically perform calculations specially adapted for tightening measurements: breaking torque, torque at a given angle, tightening angle, angle at break or maximum torque applied. These calculation results can be saved in the instrument's memory or transferred to a USB stick or computer.

    Real-time curve plotting enables instant visualization of sample behavior during tightening or loosening tests.

    Available capacities : 1.5 Nm, 6 Nm, 12 Nm

    GYROTORK TH
    • Gyrotork TH
    • handle transducer
    Measuring direction
    Clockwise & Counter clockwise
    Accuracy
    0.5% of full scale
    Resolution
    1/10,000 of full scale
    Internal load cell sampling rate
    1,000 Hz
    Autonomy
    8 hours
    Units
    Nm, kgcm, lbin, mNm, saNcm, gcm, ozin
    Display
    Color, touchscreen
    Display type
    3 lines or 2 lines + curve
    Data memory
    2,000 results
    Communication
    RS232 and USB
    Computer data rate
    Up to 1 000 Hz
    Overload protection
    150% of full scale
    Auto-off
    Adjustable from 5 to 15 minuts, can be desactivated
    I/O open drain
    3 inputs, 6 outputs
    Country of origin
    France
    HS code
    9024 80 00
