What force does the force gauge measure? Understand how it works and its applications

The force gauge is an essential instrument in various scientific and technical fields. It measures force. Whether in physics, engineering or biology, understanding forces is crucial to many practical applications.

By using a force gauge, it is possible to assess not only the force applied, but also to calculate aspects such as the strength of materials or the power applied in mechanical systems. This tool enables researchers and professionals to quantify results and make informed decisions in their projects.

Exploring the operation and application of force gauges offers a new perspective on force measurement. Further reading will reveal how this device plays a key role in explaining the physical principles that govern the world around us.

Fundamentals of force measurement

Force measurement is based on precise scientific principles. The force gauge, an essential instrument, provides data in standardized units. It is crucial to understand both its definition and the units used to quantify force.

Definition

A force gauge is a device used to measure the force applied on an object. It generally operates on the principle of elasticity, where a force applies a measurable deformation to a spring or sensor. This allows the force to be quantified as a function of the extension or compression of the spring/sensor. There are different types of force gauges, including analog and digital models. Analog or mechanical force gauges display the force on a graduated scale, while digital ones show the values on a screen. This tool is essential in many fields, including physics, engineering and education.

Force measurement units

Force is mainly measured in newtons (N) in the International System of Units (SI). One newton corresponds to the force required to accelerate one kilogram to one meter per square second. Other units such as pound-force (lbf) are also used, particularly in non-metric contexts, mainly in the USA. It's essential to know how to convert between these units when making calculations. For example, 1 lbf is equivalent to approximately 4.45 N. Proper conversion of these units helps to apply force measurements correctly in a variety of practical scenarios.

Force gauge types

There are several types of force gauges, each with specific features for different applications. Mechanical, electronic and hydraulic force gauges are the three main types, each measuring force in a different way.

Mechanical force gauge

The mechanical device uses a spring system to measure force. When force is applied, the spring deforms proportionally, allowing the value to be read on a graduated scale. These instruments are simple to use and do not require a power supply. Mechanical force gauges are often used in educational settings for physics demonstrations. They are also popular for laboratory and home applications, due to their low cost. Their accuracy depends on the quality of the spring and the scale. Ranges generally vary from a few grams to several hundred kilograms. However, they are often less accurate than other types of force gauges. Moreover, reading on a graduated scale creates a risk of reading error.

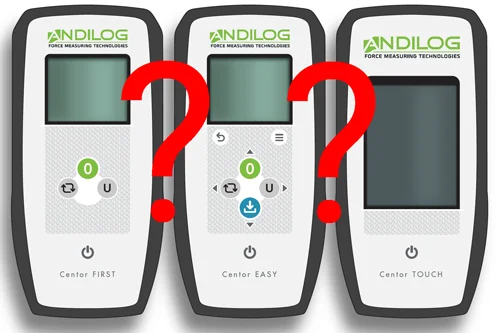

Electronic Force Gauge

The electronic force gauge measures force using electronic sensors (mostly strain gauge sensors). These sensors translate the applied force into an electrical signal, which is then displayed digitally. This enables fast, accurate reading of values. Electronic force gauges often incorporate additional features, such as the ability to store data or transmit information via a USB or wireless connection. They are used in many fields, including engineering and scientific research. These instruments require a power supply or battery to operate. They offer greater precision than mechanical devices, and are less affected by temperature variations.

Hydraulic force gauge

The hydraulic device operates on the principle of fluid pressure. It uses an incompressible fluid to measure the applied force. When a force is applied, the fluid moves, which is then converted into a force measurement. This method is particularly effective for high forces, making it a choice for industrial applications. They can be heavier and bulkier than other types, but are appreciated for their robustness. Maintenance is also crucial, as the hydraulic system must be free from leaks to guarantee accurate measurements.

Uses and applications

Force gauges play an essential role in a variety of fields, enabling forces to be measured with precision. Applications include tension and compression measurement, materials testing and industrial quality control.

Tension and compression measurements

In engineering and physics, force gauges are commonly used to measure tension and compression forces. For example, in mechanical tests on cables or chains, it can determine tensile strength. On compression springs, it measures the force at a given spring height.

The results enable engineers to ensure that the materials used meet specific standards. The digital readout functions of modern force gauges offer enhanced accuracy, making it easier to interpret the data.

Materials testing

Force gauges are crucial for materials testing, enabling properties such as strength, elasticity and ductility to be assessed. These devices are often used in research laboratories to examine composites, metals and plastics. These tests help researchers to develop new materials by providing reference tables. For example, determining the elastic limit of a material is essential for its future application in construction.

Industrial quality control

In the industrial sector, the force gauge is a key tool for quality control. It is used to check that products comply with safety standards, specifications and expected performance. Operators can quickly measure the force applied on assembled components. This ensures that the parts generated are free from defects that could lead to failure. Test results are often archived to meet regulatory requirements and for future audits.

Technical specifications

The force gauge has many essential technical features, including its range, accuracy, calibration methods and maintenance aspects. A proper understanding of these elements is crucial for effective use of the device.

Range and accuracy

The range of a force gauge (or measuring range) refers to the range of force values it can measure. For example, a force gauge can have a range from 0 to 50 kg. This means it can measure forces within this range with accurate results. Precision refers to the device's ability to provide accurate measurements. For a force gauge, accuracy is often expressed as a percentage of full scale. An accuracy of ±1% means that measurements can vary by 1% from the true value. These specifications are essential for obtaining reliable results in experiments. Current digital force gauges have accuracies of less than 0.5%.

Force gauge calibration

Calibration of a force gauge is the process by which it is adjusted to ensure accurate measurements. This process must be carried out regularly to maintain the reliability of the data obtained. It is recommended to perform it at least once a year, but the frequency may depend on use. Calibration may involve the use of standard weights or load cells to check the accuracy of the dynamometer. Results must be recorded, and a calibration certificate is supplied. This ensures that the user has proof of the unit's validity.

Maintenance and durability

Force gauge maintenance is crucial to its longevity. Regular cleaning is important to prevent corrosion and dust build-up. Mechanical devices require more regular visual inspection for signs of wear. Durability is influenced by the quality of the dynamometer's sensors and electronics. Good maintenance by the manufacturer and proper storage extend the life of the device, guaranteeing accurate measurements over the long term.

Measurement process

Measuring force with a force gauge requires a series of precise steps to ensure reliable, reproducible results. Please find following the essential process.

Preparing to measure

Before you start, it's crucial to ensure that the force gauge is correctly calibrated. This guarantees accurate measurements. Also check for any visible damage to the instrument. Next, choose a solid attachment point for both the object to be measured and the dynamometer. This may be a hook or jaws. The sample must be positioned freely, without obstruction, in the measuring axis of the load cell, to ensure correct measurement. Finally, the ambient temperature must be noted. Temperature variations can affect the dynamometer materials and influence the results.

Reading results

Once the force gauge is in position, it's time to apply the force and read the result. The force can be applied either manually (hand-held device or mounted on a manual frame) or motorized. The device displays the force in standard units such as newtons (N) or pounds (lb). The speed at which the force is applied can influence the measurement result. To read the measurement, simply leave the object in equilibrium and wait for the measurement to stabilize. If you want to measure the maximum force, most digital force gauges feature an automatic maximum memorization function.

Precautions for use

When using a force gauge, certain precautions must be taken to avoid errors. In particular, always ensure that:

• the force measured is in line with the axis of the force gauge
• the measurement is not affected by any external factors (friction, temperature, etc.)
• the measurement range and accuracy are appropriate for the sample to be tested

In addition, avoid applying excessive force to avoid damaging the device. When measuring high forces, it may be advisable to use protective covers to avoid any risk of injury should the sample break. Don't forget to consult the manufacturer's instructions regularly to ensure you are following best practice.
